FUEL TANK

SEAT FOR YAMAHA XT500 1988

FRONT WHEEL

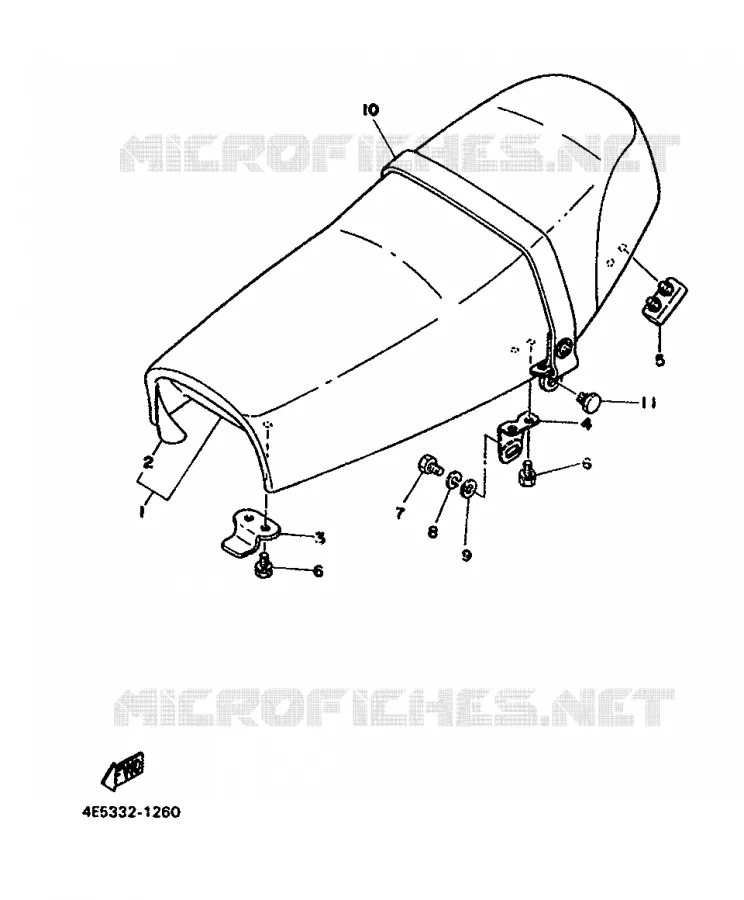

SEAT Yamaha MOTO 500 1988 XT XT500
1
DOUBLE SEAT ASSY

3H7W24720000  

4E5W24720000
 3H7W24720000

Unit Price Incl. Tax

2
NOT AVAILABLE

3H7247310000  

3H7247310000
Not available
3
SUPPORT, SELLE

2V0247480000   2V0247480000

2V0247480000
Not available
4
NOT AVAILABLE

1T1247380000  

1T1247380000
Not available
5
NOT AVAILABLE

583247240000  

583247240000
Not available
6
BOLT (583)

901010630400   901010630400

901010630400

Unit Price Incl. Tax

7
BOLT, HEXAGON

973210801600  

973130801600
 973210801600

Unit Price Incl. Tax

8
YBS67-8 WASHER, SPRING

929900810000   929900810000

929900810000

Unit Price Incl. Tax

9
WASHER, PLAIN (663)

929010860000  

929900860000
 929010860000

Unit Price Incl. Tax

10
NOT AVAILABLE

3H7247200000  

3H7247200000
Not available
11
NOT AVAILABLE

901090844400  

901090844400
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the SEAT of your Yamaha XT500 of 1988. Let us know if you have any questions.
