GEAR SHIFT LEVER

FRAME FOR YAMAHA XT500 1988

FENDER

NOT AVAILABLE

4E5211100033

Not available

NET, OIL TANK FILTER

583217560000 583217560000

66,41 €

Unit Price Incl. Tax

GASKET (583 OIL TANK)

904302212300 904302212300

4,27 €

Unit Price Incl. Tax

BOLT, FLANGE

958010801200

958110801200

2,00 €

Unit Price Incl. Tax

WASHER, PLATE 3411117500

904300811900

902010808700

2,08 €

Unit Price Incl. Tax

BOLT, WASHER BASED(1RU)

901051003900

901051074700

4,27 €

Unit Price Incl. Tax

BOLT (583 FRAME)

901051006300 901051006300

10,17 €

Unit Price Incl. Tax

NUT, SELFLOCKING (533 FRAME)

901851003500

901851006000

5,87 €

Unit Price Incl. Tax

BOLT, FLANGE(3JP)

901050806400

958140808000

5,61 €

Unit Price Incl. Tax

BOLT, WASHER BASED(8AB)

901051005100

901051071200

10,52 €

Unit Price Incl. Tax

NUT, U

901850805400

901850808900

6,04 €

Unit Price Incl. Tax

NOT AVAILABLE

902080801100

Not available

WASHER, PLATE (26H)

902011012600

90201102G900

4,82 €

Unit Price Incl. Tax

NOT AVAILABLE

583213160000

Not available

BOLT (682)

973210802500

970130802500

2,98 €

Unit Price Incl. Tax

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,14 €

Unit Price Incl. Tax

WASHER, PLAIN (663)

929010860000

929900860000

1,14 €

Unit Price Incl. Tax

NOT AVAILABLE

1T1213170000

Not available

BOLT (682)

973210802500

970130802500

2,98 €

Unit Price Incl. Tax

YBS67-8 WASHER, SPRING

929900810000 929900810000

1,14 €

Unit Price Incl. Tax

WASHER, PLAIN (663)

929010860000

929900860000

1,14 €

Unit Price Incl. Tax

NOT AVAILABLE

583213150000

Not available

BOLT, FLANGE

901050815500

901050817700

2,23 €

Unit Price Incl. Tax

NOT AVAILABLE

1T1214710100

Not available

BOLT(8CP)

973010601400

973210601400

0,84 €

Unit Price Incl. Tax

WASHER(6A1)

929900610000

929950610000

0,73 €

Unit Price Incl. Tax

WASHER, PLATE

90201065F300

902010602000

3,92 €

Unit Price Incl. Tax

HELMET HANGER ASSY

55E213080000

5H0213080100

107,63 €

Unit Price Incl. Tax

SCREW, FLAT

927010601800

987010601800

1,14 €

Unit Price Incl. Tax

NOT AVAILABLE

1T2214410000

Not available

BODY, CAP

583217710000

2J2217710200

18,81 €

Unit Price Incl. Tax

GASKET (583 OIL TANK CAP)

904302712400 904302712400

4,27 €

Unit Price Incl. Tax

HOSE (L200)

904451128900 904451128900

11,12 €

Unit Price Incl. Tax

CLIP(1JH)

904671000800

904671101000

2,90 €

Unit Price Incl. Tax

NOT AVAILABLE

583217550000

Not available

SCREW, TAPPING(6U1)

977015011000

977805011000

4,48 €

Unit Price Incl. Tax

CAP, HANDLE LOCK

134234841000 134234841000

9,48 €

Unit Price Incl. Tax

RIVET 214234830000

902690400300 902690400300

2,19 €

Unit Price Incl. Tax

WASHER, CONICAL SPRING (3J3)

902080402900 902080402900

1,11 €

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

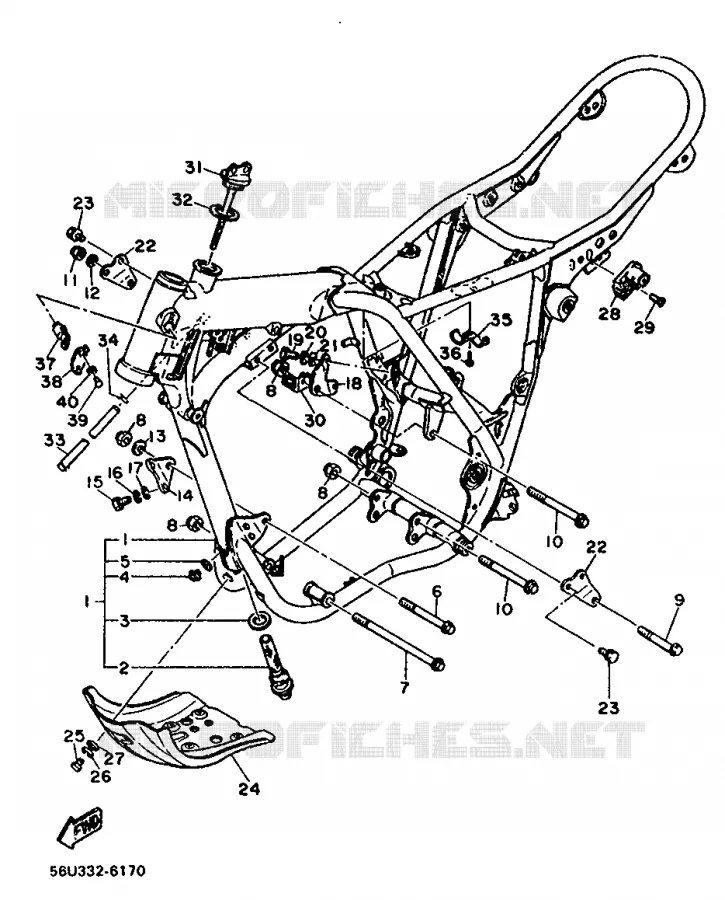

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME of your Yamaha XT500 of 1988. Let us know if you have any questions.
