SEAT FOR YAMAHA TDM850 1996

FRONT WHEEL

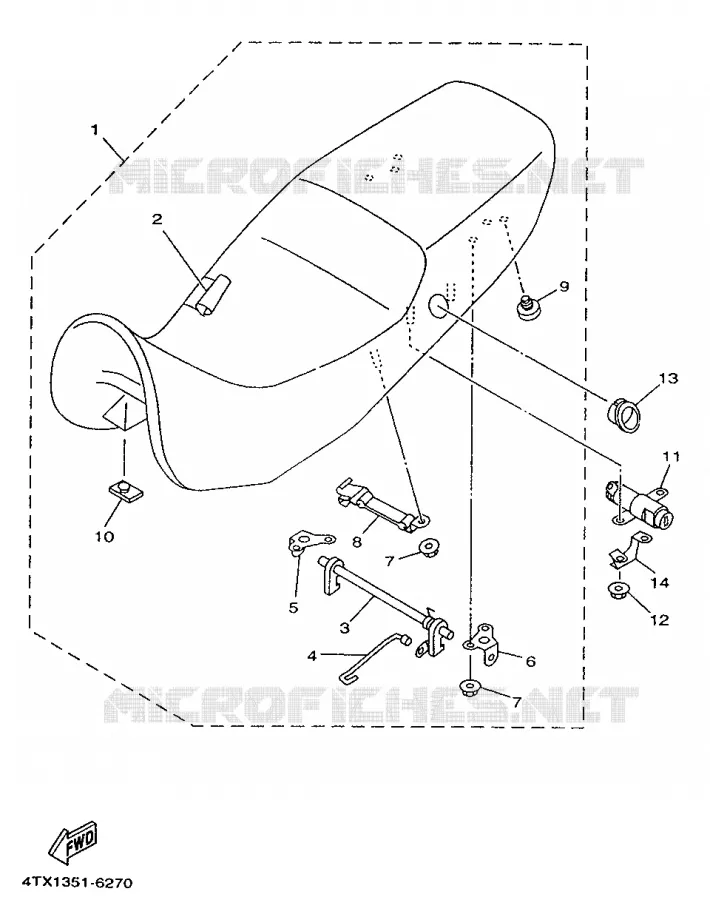

SEAT Yamaha MOTO 850 1996 TDM TDM850
1
DOUBLE SEAT ASSY

4TX247300000  

4TX247300000
Not available
2
NOT AVAILABLE

4TX247310000  

4TX247310000
Not available
3
LEVER, SEAT

4TX247760000  

4TX247760000
Not available
4
NOT AVAILABLE

4TX2478F0000  

4TX2478F0000
Not available
5
NOT AVAILABLE

4TX247280000  

4TX247280000
Not available
6
NOT AVAILABLE

4TX247180000  

4TX247180000
Not available
7
NUT, FLANGE(7NB)

957010650000  

957040650000
 957010650000

Unit Price Incl. Tax

8
NOT AVAILABLE

4TX213760000  

999999999900
 4TX213760000
9
PAD, SEAT

22W247410000   22W247410000

22W247410000

Unit Price Incl. Tax

10
DAMPER, SEAT

509247240000   509247240000

509247240000

Unit Price Incl. Tax

11
NOT AVAILABLE

4BH247050000  

4BH247050000
Not available
12
NUT, FLANGE(3GM)

957070550000   957070550000

957070550000

Unit Price Incl. Tax

13
COVER

47X247960000   47X247960000

47X247960000

Unit Price Incl. Tax

14
NOT AVAILABLE

4TX247480000  

4TX247480000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the SEAT of your Yamaha TDM850 of 1996. Let us know if you have any questions.
