FRONT FORK

FUEL TANK FOR YAMAHA TDM850 1996

SEAT

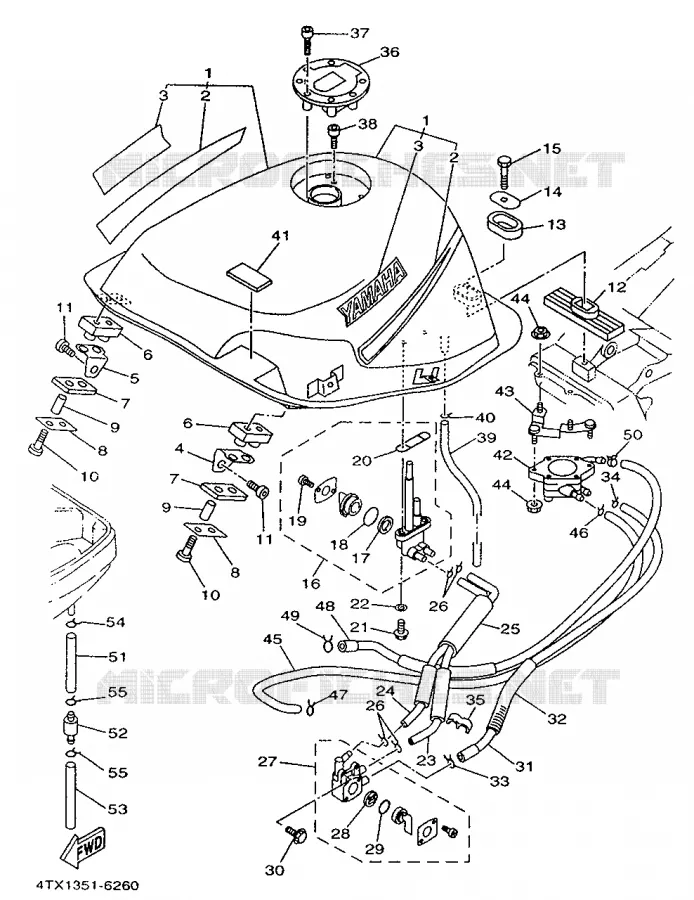

FUEL TANK Yamaha MOTO 850 1996 TDM TDM850
1
NOT AVAILABLE

4TX241101001  

4TX241101001
Not available
2
NOT AVAILABLE

4TX242400000  

4TX242400000
Not available
3
EMBLEM, YAMAHA

992240014000  

992440014000
 992240014000

Unit Price Incl. Tax

3
EMBLEM, YAMAHA

992270014000  

992470014000
 992270014000

Unit Price Incl. Tax

4
NOT AVAILABLE

4TX241910000  

4TX241910000
Not available
5
NOT AVAILABLE

4TX241920000  

4TX241920000
Not available
6
NOT AVAILABLE

3VD241810000  

3VD241810000
Not available
7
NOT AVAILABLE

47X241830000  

47X241830000
Not available
8
NOT AVAILABLE

47X241860000  

47X241860000
Not available
9
NOT AVAILABLE

903870660500  

903870660500
Not available
10
BOLT, BUTTON

920170603500   920170603500

920170603500

Unit Price Incl. Tax

11
BOLT, BUTTON HEAD

90109086A000  

920170801200
 90109086A000

Unit Price Incl. Tax

12
DAMPER, LOCATING 4

2GH241840000   2GH241840000

2GH241840000

Unit Price Incl. Tax

13
DAMPER, LOCATING 3

3Y6241830000   3Y6241830000

3Y6241830000

Unit Price Incl. Tax

14
WASHER, SPECIAL

12R241860000   12R241860000

12R241860000

Unit Price Incl. Tax

15
BOLT, HEXAGON

970170803000   970170803000

970170803000

Unit Price Incl. Tax

16
FUEL COCK ASSY 2

4TX245100000  

4TX245100000
Not available
17
VALVE

4DN245230000   4DN245230000

4DN245230000

Unit Price Incl. Tax

18
SEAL, COCK

3AJ245340000  

3AJ245340100
 3AJ245340000

Unit Price Incl. Tax

19
SCREW, PAN HEAD(3AC)

985070300800  

985170300800
 985070300800

Unit Price Incl. Tax

20
O-RING

4X8245120000   4X8245120000

4X8245120000

Unit Price Incl. Tax

21
SCREW 256241430000

901490601100   901490601100

901490601100

Unit Price Incl. Tax

22
WASHER, PLATE(3MB)

902020518700   902020518700

902020518700

Unit Price Incl. Tax

23
NOT AVAILABLE

4TX243100000  

4TX243100000
Not available
24
NOT AVAILABLE

4TX243110000  

4TX243110000
Not available
25
NOT AVAILABLE

1JK243270000  

1JK243270000
Not available
26
CLIP(1JH)

904671000800  

904671101000
 904671000800

Unit Price Incl. Tax

27
FUEL COCK ASSY

3LN245000000   3LN245000000

3LN245000000

Unit Price Incl. Tax

28
VALVE PACKING

3AJ245230000  

3AC245230000
 3AJ245230000

Unit Price Incl. Tax

29
SEAL, COCK

3AJ245340000  

3AJ245340100
 3AJ245340000

Unit Price Incl. Tax

30
BOLT, FLANGE(4MY)

950270601000   950270601000

950270601000

Unit Price Incl. Tax

31
PIPE 5

4TX243150000  

42H243150000
 4TX243150000

Unit Price Incl. Tax

32
NOT AVAILABLE

4TX243260000  

4TX243260000
Not available
33
CLIP(1JH)

904671000800  

904671101000
 904671000800

Unit Price Incl. Tax

34
CLIP(1JH)

904671110600   904671110600

904671110600

Unit Price Incl. Tax

35
CLAMP(6M7)

904641007500  

9046409M3100
 904641007500

Unit Price Incl. Tax

36
CAP ASSY

4FM246020000  

4FM246021000
 4FM246020000

Unit Price Incl. Tax

37
BOLT, HEXAGON SOCKET HEAD(1FM)

901100511200   901100511200

901100511200

Unit Price Incl. Tax

38
BOLT, SOCKET

913170501000   913170501000

913170501000

Unit Price Incl. Tax

39
HOSE (L730)

90445106J200  

90445105K700
 90445106J200

Unit Price Incl. Tax

40
CLIP

904670900600  

90467090A200
 904670900600

Unit Price Incl. Tax

41
DAMPER, PLATE

30X2139X0000  

905200502500
 30X2139X0000

Unit Price Incl. Tax

42
FUEL PUMP ASSY

4NX139100000  

4NX139100100
 4NX139100000

Unit Price Incl. Tax

43
NOT AVAILABLE

4TX2452E0000  

4TX2452E0000
Not available
44
NUT, U FLANGE

956070620000  

956020620000
 956070620000

Unit Price Incl. Tax

45
NOT AVAILABLE

4TX139380000  

4TX139380000
Not available
46
CLIP (8L2)

904670801700   904670801700

904670801700

Unit Price Incl. Tax

47
CLIP (16G)

904670802100   904670802100

904670802100

Unit Price Incl. Tax

48
NOT AVAILABLE

4TX142940000  

4TX142940000
Not available
49
CLIP(1JH)

904671110600   904671110600

904671110600

Unit Price Incl. Tax

50
CLIP(3BM)

904671013500   904671013500

904671013500

Unit Price Incl. Tax

51
HOSE (L800)

904451115300  

90445114A100
 904451115300

Unit Price Incl. Tax

52
FILTER ASSY

4X72149Y0000   4X72149Y0000

4X72149Y0000

Unit Price Incl. Tax

53
HOSE (L370)

90445112E100   90445112E100

90445112E100
Not available
54
CLIP(1JH)

904671110600   904671110600

904671110600

Unit Price Incl. Tax

55
CLIP(1JH)

904671000800  

904671101000
 904671000800

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FUEL TANK of your Yamaha TDM850 of 1996. Let us know if you have any questions.
