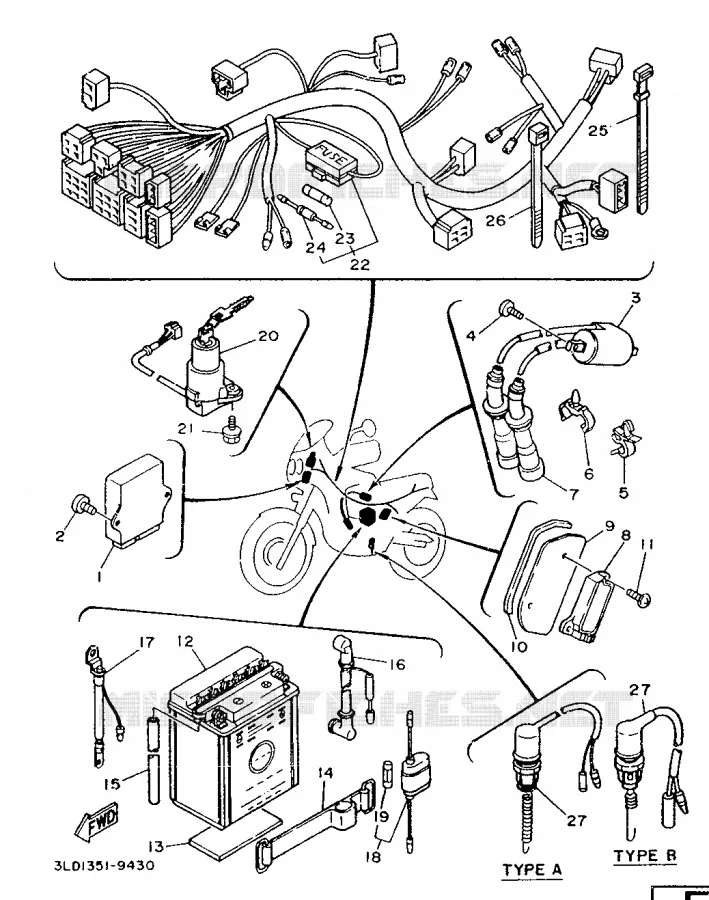

ELECTRICAL 1 FOR YAMAHA XTZ750 1989

ELECTRICAL 2

NOT AVAILABLE

3LD823050000

Not available

SCREW, PAN

925010601200

985010601200

1,14 €

Unit Price Incl. Tax

IGNITION COIL ASSY

3LD823100000

Not available

SCREW PAN HEAD

925010602000

985010602000

3,01 €

Unit Price Incl. Tax

BRIDE

904641912900 904641912900

Not available

CLAMP(3LD)

904640913000 904640913000

2,98 €

Unit Price Incl. Tax

PLUG CAP ASSY

3LD823700000 3LD823700000

76,19 €

Unit Price Incl. Tax

RECTIFIER & REGULATOR ASSY

47X81960A100

47X81960A200

338,66 €

Unit Price Incl. Tax

PLATE, REGULATOR FITTING

3LD819150000

Not available

COVER

3LD819420000

Not available

SCREW PAN HEAD

925020601600

985020601600

2,23 €

Unit Price Incl. Tax

BATTERY SP A123 (YB14L-A)

3LD821100000

3LD821100100

108,13 €

Unit Price Incl. Tax

SEAT, BATTERY

5Y1821220000 5Y1821220000

5,73 €

Unit Price Incl. Tax

NOT AVAILABLE

34U821310100

Not available

HOSE (L1500)

90445080F400

90445084J000

7,68 €

Unit Price Incl. Tax

NOT AVAILABLE

3LD821150000

Not available

NOT AVAILABLE

3LD821160000

Not available

FUSE HOLDER ASSY

2UJ821500000

2UJ821500100

16,75 €

Unit Price Incl. Tax

FUSE

148821510000

1A0821610000

6,73 €

Unit Price Incl. Tax

NOT AVAILABLE

3LD825010000

Not available

BOLT

901090661400

90109060G400

6,42 €

Unit Price Incl. Tax

NOT AVAILABLE

3LD825901000

Not available

FUSE (10A)

1E6821510000 1E6821510000

12,32 €

Unit Price Incl. Tax

RECTIFIER 2

3K7819800000 3K7819800000

19,40 €

Unit Price Incl. Tax

BAND, SWITCH CORD

25G839360000

25G839360100

3,44 €

Unit Price Incl. Tax

BAND, SWITCH CORD

341263970100

437839360100

5,25 €

Unit Price Incl. Tax

STOP SWITCH ASSY

3LD825300000

Not available

STOP SWITCH ASSY

42X825300100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha XTZ750 of 1989. Let us know if you have any questions.
