FUEL TANK

SEAT FOR YAMAHA XP500R 2003

SEAT 2

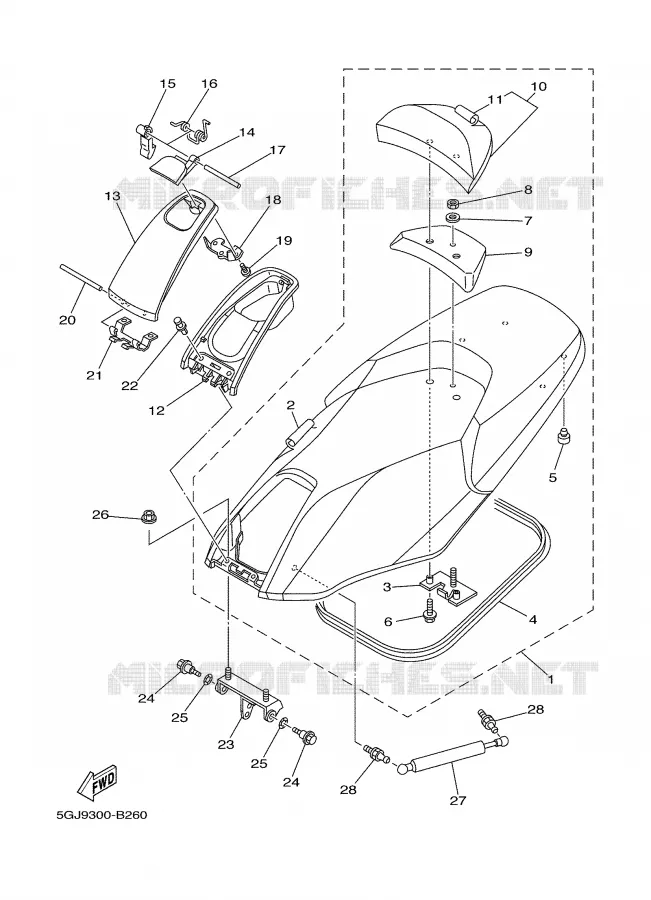

SEAT Yamaha SCOOTER 500 2003 TMAX XP500R
1
DOUBLE SEAT ASSY

5GJ247302000  

5GJ247302000
Not available
2
SEAT COVER COMP.

5GJ2470F2000  

5GJ2470F2100
 5GJ2470F2000

Unit Price Incl. Tax

3
NOT AVAILABLE

5GJ247480000  

5GJ247480000
Not available
4
NOT AVAILABLE

5GJ2475M0000  

5GJ2475M0000
Not available
5
NOT AVAILABLE

5GJ247410000  

5GJ247410000
Not available
6
BOLT, FLANGE

958070602000  

958170602000
 958070602000

Unit Price Incl. Tax

7
WASHER, PLATE

902010638000   902010638000

902010638000

Unit Price Incl. Tax

8
NUT, U FLANGE

956070620000  

956020620000
 956070620000

Unit Price Incl. Tax

9
NOT AVAILABLE

5GJ247920000  

5GJ247920000
Not available
10
NOT AVAILABLE

5GJ247902000  

5GJ247902000
Not available
11
NOT AVAILABLE

5GJ2477A2000  

5GJ2477A2000
Not available
12
COVER, SEAT COMP.

5GJ2473F0000   5GJ2473F0000

5GJ2473F0000

Unit Price Incl. Tax

13
LID 1

5GJ2473T0000   5GJ2473T0000

5GJ2473T0000

Unit Price Incl. Tax

14
LEVER, SEAT

5GJ2477F0000   5GJ2477F0000

5GJ2477F0000

Unit Price Incl. Tax

15
HOOK, SEAT

5GJ247540000  

5GJ247540100
 5GJ247540000

Unit Price Incl. Tax

16
SPRING

4HC247580000   4HC247580000

4HC247580000

Unit Price Incl. Tax

17
PIN, DOWEL(4HC)

936035019500   936035019500

936035019500

Unit Price Incl. Tax

18
COVER

5GJ242170000   5GJ242170000

5GJ242170000

Unit Price Incl. Tax

19
SCREW, PAN TAP.2 SLIT

977070410800  

977074060800
 977070410800

Unit Price Incl. Tax

20
PIN

5GJ247740000   5GJ247740000

5GJ247740000

Unit Price Incl. Tax

21
NOT AVAILABLE

5GJ247620000  

5GJ247620000
Not available
22
RIVET(4JH)

902690707600   902690707600

902690707600

Unit Price Incl. Tax

23
NOT AVAILABLE

5GJ2197J0000  

5GJ2197J0000
Not available
24
BOLT(3KJ)

90109063F500   90109063F500

90109063F500

Unit Price Incl. Tax

25
WASHER, WAVE

902061003600   902061003600

902061003600

Unit Price Incl. Tax

26
NUT(55X)

957070850000  

901790849100
 957070850000

Unit Price Incl. Tax

27
NOT AVAILABLE

5GJ2478G0000  

5GJ2478G0000
Not available
28
NOT AVAILABLE

5GM2474E0000  

5GM2474E0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
