GEAR SHIFT LEVER

FRAME FOR YAMAHA SR500 1993

FENDER

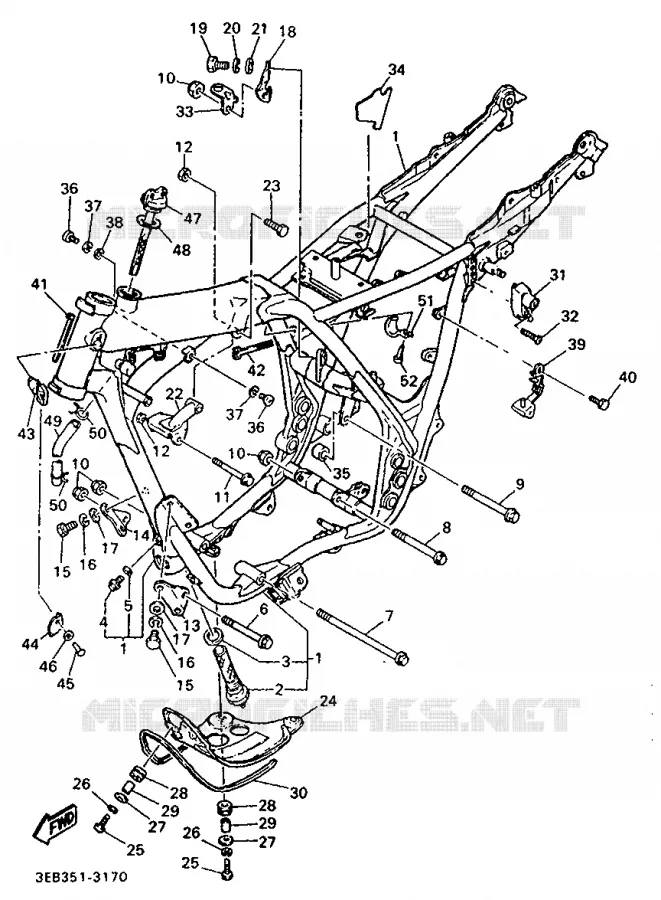

FRAME Yamaha MOTO 500 1993 SR SR500
1
FRAME COMP.

3EB211100033  

3EB211100033
Not available
2
NET, OIL TANK FILTER

583217560000   583217560000

583217560000

Unit Price Incl. Tax

3
GASKET (583 OIL TANK)

904302212300   904302212300

904302212300

Unit Price Incl. Tax

4
BOLT, FLANGE

958110801200  

958170801200
 958110801200

Unit Price Incl. Tax

5
WASHER, PLATE 3411117500

902010808700   902010808700

902010808700

Unit Price Incl. Tax

6
BOLT, WASHER BASED(1RU)

901051003900  

901051074700
 901051003900

Unit Price Incl. Tax

7
BOLT, WASHER BASED(4KM)

901051011300  

901051078000
 901051011300

Unit Price Incl. Tax

8
BOLT, WASHER BASED(8AB)

901051005100  

901051071200
 901051005100

Unit Price Incl. Tax

9
BOLT(30W)

901051011900  

90109101A000
 901051011900

Unit Price Incl. Tax

10
NUT, SELFLOCKING (533 FRAME)

901851006000   901851006000

901851006000

Unit Price Incl. Tax

11
BOLT (2J2)

901050811800   901050811800

901050811800

Unit Price Incl. Tax

12
NUT, U

901850805400  

901850808900
 901850805400

Unit Price Incl. Tax

13
NOT AVAILABLE

2J2213150033  

2J2213150033
Not available
14
NOT AVAILABLE

2J2213160033  

2J2213160033
Not available
15
BOLT(JA9)

973130801800  

970130801800
 973130801800

Unit Price Incl. Tax

16
YBS67-8 WASHER, SPRING

929900810000   929900810000

929900810000

Unit Price Incl. Tax

17
WASHER, PLAIN (663)

929010860000  

929900860000
 929010860000

Unit Price Incl. Tax

18
STAY, ENGINE REAR

2J2213170100   2J2213170100

2J2213170100

Unit Price Incl. Tax

19
BOLT (682)

970130802500   970130802500

970130802500

Unit Price Incl. Tax

20
YBS67-8 WASHER, SPRING

929900810000   929900810000

929900810000

Unit Price Incl. Tax

21
WASHER, PLAIN (663)

929010860000  

929900860000
 929010860000

Unit Price Incl. Tax

22
NOT AVAILABLE

2J2213180100  

2J2213180100
Not available
23
BOLT (682)

973130804000  

973130804000
Not available
24
PROTECTOR, ENGINE

3GW214710090  

3GW214710033
 3GW214710090

Unit Price Incl. Tax

25
BOLT, HEXAGON

970110602000  

970170602000
 970110602000

Unit Price Incl. Tax

26
WASHER(6A1)

929950610000   929950610000

929950610000

Unit Price Incl. Tax

27
WASHER, PLATE(36Y)

90201063J200   90201063J200

90201063J200

Unit Price Incl. Tax

28
GROMMET (3X4)

904801327500   904801327500

904801327500

Unit Price Incl. Tax

29
COLLAR (3H5)

90387060A300   90387060A300

90387060A300

Unit Price Incl. Tax

30
MOLE 4

29L283450000  

36Y283480000
 29L283450000

Unit Price Incl. Tax

31
HELMET HANGER ASSY

26H213080000  

26H213080100
 26H213080000

Unit Price Incl. Tax

32
SCREW (3H1)

901510603800  

901490615000
 901510603800

Unit Price Incl. Tax

33
STAY, STOP SWITCH

2J22144G0000   2J22144G0000

2J22144G0000

Unit Price Incl. Tax

34
NOT AVAILABLE

2J22117F0000  

2J22117F0000
Not available
35
COLLAR, REAR ENGINE STAY

2J2214590100   2J2214590100

2J2214590100

Unit Price Incl. Tax

36
SCREW, PAN HEAD (646)

985010501200  

985800501200
 985010501200

Unit Price Incl. Tax

37
YBS67-5 WASHER, SPRING

929010510000  

929900510000
 929010510000

Unit Price Incl. Tax

38
YBS66-5 WASHER, PLAIN

929900520000   929900520000

929900520000

Unit Price Incl. Tax

39
NOT AVAILABLE

48U213950000  

48U213950000
Not available
40
BOLT, FLANGE

958160601200  

958170601200
 958160601200

Unit Price Incl. Tax

41
BAND

904651316900  

1UA825910000
 904651316900

Unit Price Incl. Tax

42
CLAMP(MF1)

904641411700  

904641515200
 904641411700

Unit Price Incl. Tax

44
CAP, HANDLE LOCK

134234841000   134234841000

134234841000

Unit Price Incl. Tax

45
RIVET 214234830000

902690400300   902690400300

902690400300

Unit Price Incl. Tax

46
WASHER, CONICAL SPRING (3J3)

902080402900   902080402900

902080402900

Unit Price Incl. Tax

47
BODY, CAP

2J2217710200  

2J2217711000
 2J2217710200

Unit Price Incl. Tax

48
GASKET (583 OIL TANK CAP)

904302712400   904302712400

904302712400

Unit Price Incl. Tax

49
HOSE (L200)

904451128900   904451128900

904451128900

Unit Price Incl. Tax

50
CLIP(1JH)

904671000800  

904671101000
 904671000800

Unit Price Incl. Tax

51
NOT AVAILABLE

2J2213350000  

2J2213350000
Not available
52
SCREW, TAPPING(61A)

977805061200   977805061200

977805061200

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the FRAME of your Yamaha SR500 of 1993. Let us know if you have any questions.
