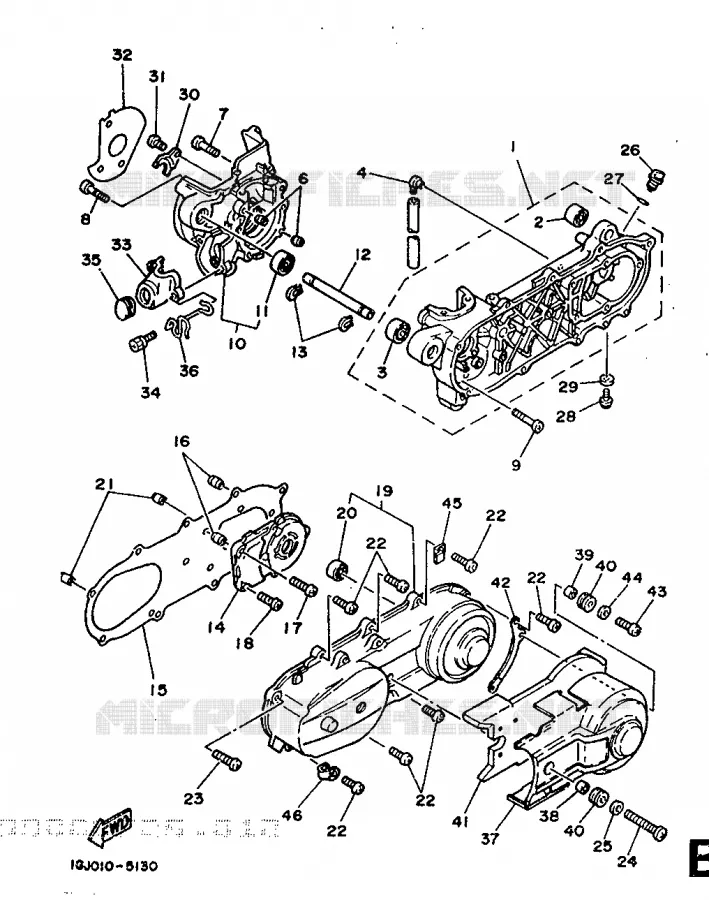

CRANKCASE FOR YAMAHA BELUGA 1988

STARTER MOTOR

(1) 1GJ151100500

CRANKCASE ASSY 1

(2) 164-22216-00-00

BUSHING, REAR CUSHION

(3) 93306-00201-00

BRG,R-B 6002RS 32MM 30G KY

(4) 583153710000

BREATHER

(6) 995301201600

PIN, DOWEL

(7) 985070603500

SCREW, PAN

(8) 985800604000

SCREW PAN HEAD

(9) 985800654500

SCREW PAN HEAD

(10) 1GJ151200200

CRANKCASE ASSY 2

(11) 93306-00201-00

BRG,R-B 6002RS 32MM 30G KY

(12) 1GJ-15317-00-00

SPACER, ENGINE MOUNT

(13) 990091540000

CIRCLIP(1AR)

(14) 1HV-15421-01-00

COVER, CRANKCASE 2

(15) 3WX154510000

GASKET, CRANKCASE COVER 1

(16) 99530-10014-00

PIN, DOWEL

(17) 985070603500

SCREW, PAN

(18) 985800602000

SCREW PAN HEAD

(19) 1JX-W1541-01-00

CRANKCASE COVER ASSY 1

(20) 933006381300

BEARING

(21) 99530-10014-00

PIN, DOWEL

(22) 985170602500

SCREW, PAN HEAD (76T)

(23) 985070603500

SCREW, PAN

(24) 92906-06070-00

RONDELLE

(25) 929070660000

WASHER(6TA)

(26) 4J2153631000

PLUG, OIL

(27) 932101457900

O-RING (26H)

(28) 9010508X1500

BLT,HEX,1/4-20X5/8

(29) 902010808700

WASHER, PLATE 3411117500

(30) 1HV-15128-00-00

HOLDER

(31) 985170601200

SCREW, PAN

(32) 3WX154620000

GASKET, CRANKCASE COVER 3

(33) 24G-15416-00-00

COVER, OIL PUMP

(34) 90159-06075-00

SCREW, WITH WASHER (33A)

(35) 90480-01300-00

GROMMET (5G3)

(36) 90465-20293-00

CLAMP(1GJ)

(37) 1GJ-15431-00-00

COVER, CRANKCASE 3

(38) 903870624100

COLLAR (420)

(39) 90387-06007-00

COLLAR

(40) 90480-12237-00

GROMMET (2T4)

(41) 1GJ-15316-00-00

DAMPER, ENGINE MOUNT 1

(42) 1GJ-1541F-00-00

STAY, COVER 3

(43) 92506-06600-00

VIS, TETE TRONCONIQUE

(44) 929070660000

WASHER(6TA)

(45) 54V-15484-00-00

CLAMP 2

(46) 90465-10296-00

CLAMP(1GJ)

	Part number	Description	Qty
# 1	1GJ-15110-02-00 1GJ151100200	CRANKCASE ASSY 1	Not available	0,00 €
# 2	164-22216-00-00 164222160000 164222160000	BUSHING, REAR CUSHION	8,38 €
# 3	93306-00201-00 933060020100 933060020100	BRG, R-B 6002RS 32MM 30G KY	50,34 €
# 4	498-15371-00-00 583153710000 498153710000	BREATHER	6,46 €
# 6	99510-12016-00 995301201600 995101201600	PIN, DOWEL	3,43 €
# 7	92501-06035-00 985070603500 925010603500	SCREW, PAN	0,60 €
# 8	92501-06040-00 985800604000 925010604000	SCREW PAN HEAD	3,37 €
# 9	92503-06045-00 985800654500 925030604500	SCREW PAN HEAD	4,39 €
# 10	1GJ-15120-00-00 1GJ151200000	CRANKCASE ASSY 2	Not available	0,00 €
# 11	93306-00201-00 933060020100 933060020100	BRG, R-B 6002RS 32MM 30G KY	50,34 €
# 12	1GJ-15317-00-00 1GJ153170000 1GJ153170000	SPACER, ENGINE MOUNT	Not available	0,00 €
# 13	93440-15012-00 990091540000 934401501200	CIRCLIP(1AR)	3,06 €
# 14	1HV-15421-01-00 1HV154210100 1HV154210100	COVER, CRANKCASE 2	Not available	0,00 €
# 15	27V-15451-03-00 27V154510300	GASKET, CRANKCASE COVER 1	Not available	0,00 €
# 16	99530-10014-00 995301001400 995301001400	PIN, DOWEL	3,06 €
# 17	92501-06035-00 985070603500 925010603500	SCREW, PAN	0,60 €
# 18	92501-06020-00 985800602000 925010602000	SCREW PAN HEAD	2,52 €
# 19	1JX-W1541-01-00 1JXW15410100 1JXW15410100	CRANKCASE COVER ASSY 1	Not available	0,00 €
# 20	93300-63808-00 933006381300 933006380800	BEARING	39,36 €
# 21	99530-10014-00 995301001400 995301001400	PIN, DOWEL	3,06 €
# 22	92506-06025-00 985170602500 925060602500	SCREW, PAN HEAD (76T)	0,50 €
# 23	92506-06035-00 985070603500 925060603500	SCREW, PAN	0,60 €
# 24	92906-06070-00 929060607000 929060607000	RONDELLE	Not available	0,00 €
# 25	92906-06600-00 929070660000 929060660000	WASHER(6TA)	0,60 €
# 26	2T4-15363-00-00 4J2153631000 2T4153630000	PLUG, OIL	5,12 €
# 27	93210-14104-00 932101457900 932101410400	O-RING (26H)	1,56 €
# 28	95801-08016-00 9010508X1500 958010801600	BLT, HEX, 1/4-20X5/8	1,61 €
# 29	90430-08119-00 902010808700 904300811900	WASHER, PLATE 3411117500	3,06 €
# 30	1HV-15128-00-00 1HV151280000 1HV151280000	HOLDER	4,39 €
# 31	92501-06012-00 925010601200	SCREW, PAN	Not available	0,00 €
# 32	14T-15462-00-00 14T154620000	GASKET, CRANKCASE COVER 3	Not available	0,00 €
# 33	24G-15416-00-00 24G154160000 24G154160000	COVER, OIL PUMP	Not available	0,00 €
# 34	90159-06075-00 901590607500 901590607500	SCREW, WITH WASHER (33A)	Not available	0,00 €
# 35	90480-01300-00 904800130000 904800130000	GROMMET (5G3)	Not available	0,00 €
# 36	90465-20293-00 904652029300 904652029300	CLAMP(1GJ)	Not available	0,00 €
# 37	1GJ-15431-00-00 1GJ154310000 1GJ154310000	COVER, CRANKCASE 3	Not available	0,00 €
# 38	90387-060M1-00 903870624100 90387060M100	COLLAR (420)	3,28 €
# 39	90387-06007-00 903870600700 903870600700	COLLAR	Not available	0,00 €
# 40	90480-12237-00 904801223700 904801223700	GROMMET (2T4)	3,28 €
# 41	1GJ-15316-00-00 1GJ153160000 1GJ153160000	DAMPER, ENGINE MOUNT 1	Not available	0,00 €
# 42	1GJ-1541F-00-00 1GJ1541F0000 1GJ1541F0000	STAY, COVER 3	Not available	0,00 €
# 43	92506-06600-00 925060660000 925060660000	VIS, TETE TRONCONIQUE	Not available	0,00 €
# 44	92906-06600-00 929070660000 929060660000	WASHER(6TA)	0,60 €
# 45	54V-15484-00-00 54V154840000 54V154840000	CLAMP 2	Not available	0,00 €
# 46	90465-10296-00 904651029600 904651029600	CLAMP(1GJ)	Not available	0,00 €

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CRANKCASE of your Yamaha BELUGA of 1988. Let us know if you have any questions.
