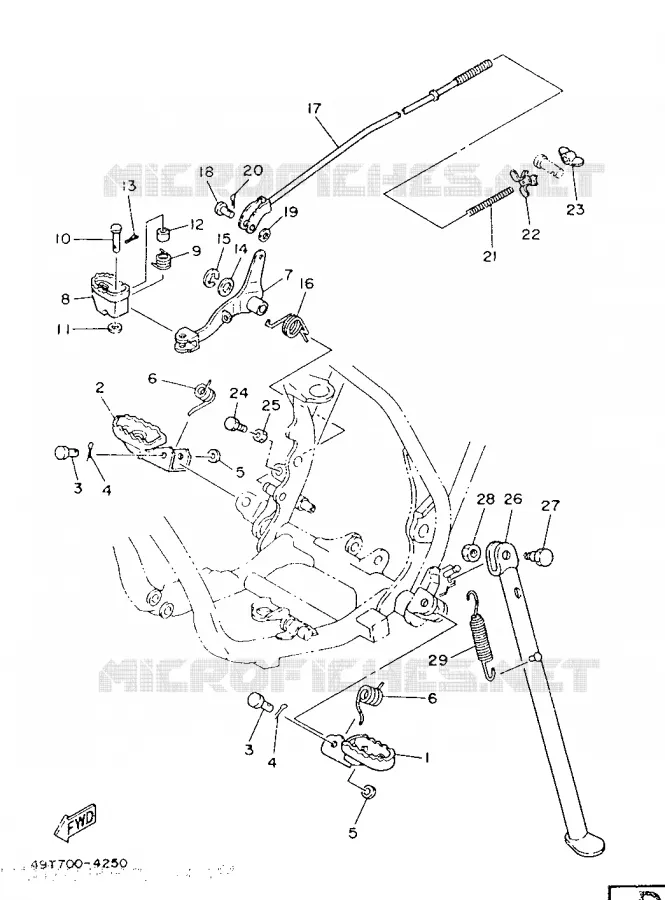

STAND / FOOTREST FOR YAMAHA IT200 1986

COVER 1

FOOTREST 1

23X274110000

Not available

FOOTREST 2

23X274210200

Not available

PIN, CLEVIS (23X)

902401010100 902401010100

21,19 €

Unit Price Incl. Tax

PIN, COTTER

914012502000

914902502000

2,12 €

Unit Price Incl. Tax

WASHER, PLAIN(735)

902011011900 902011011900

5,82 €

Unit Price Incl. Tax

SPRING, TORSION (23X)

905082058300 905082058300

3,44 €

Unit Price Incl. Tax

NOT AVAILABLE

49T272110000

Not available

NOT AVAILABLE

5X8272420000

Not available

NOT AVAILABLE

905082045100

Not available

PIN, CLEVIS (3R9)

917010803200 917010803200

3,87 €

Unit Price Incl. Tax

WASHER, PLAIN (663)

929010860000

929900860000

1,14 €

Unit Price Incl. Tax

COLLAR (7G5)

903870876200

903870878500

6,42 €

Unit Price Incl. Tax

PIN, COTTER

914012501500

914012502000

2,12 €

Unit Price Incl. Tax

WASHER(6TA)

929021260000

929071260000

1,14 €

Unit Price Incl. Tax

CIRCLIP (4V2)

934300903800 934300903800

3,01 €

Unit Price Incl. Tax

NOT AVAILABLE

905083266200

Not available

NOT AVAILABLE

43G272310000

Not available

PIN, CLEVIS (24X)

902400604000

902400610300

2,98 €

Unit Price Incl. Tax

YBS66-6 WASHER, PLAIN

929010620000

929900620000

1,14 €

Unit Price Incl. Tax

PIN, COTTER (648)

914012001500

914902001500

2,79 €

Unit Price Incl. Tax

SPRING, (180-27236-00)

905011024500 905011024500

3,44 €

Unit Price Incl. Tax

NOT AVAILABLE

1W2272390000

Not available

NUT, AJUSTING

20E263430000 20E263430000

25,31 €

Unit Price Incl. Tax

BOLT, HEXAGON DEEP RECESS

973010601600

973130601600

1,07 €

Unit Price Incl. Tax

NUT

953010670000

953030670000

1,03 €

Unit Price Incl. Tax

NOT AVAILABLE

43G273110033

Not available

BOLT 122273170100

901090803200 901090803200

3,58 €

Unit Price Incl. Tax

NUT(661)

953010870000

953030870000

2,23 €

Unit Price Incl. Tax

SPRING (460)

905072900900 905072900900

22,71 €

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha IT200 of 1986. Let us know if you have any questions.
